拡散型圧力波(RPW / Radial Pressure Wave)

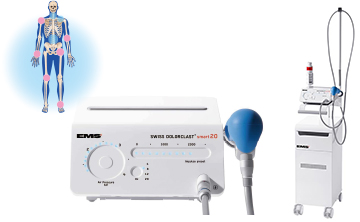

EMS SWISS DOLORCLAST smart20は、拡散型圧力波治療器です。
体外衝撃波治療器には、集束型衝撃波(focused shock wave)と拡散型圧力波(radial pressure wave)があります。
集束型は衝撃波を集束させて高いエネルギーを深部に伝えますが、拡散型はハンドピースからエネルギーが放射状に広がり、皮膚から浅い領域に伝えます。
イベント開催報告
クリストフ・シュミッツ教授(ミュンヘン大学・ドイツ)
拡散型圧力波プレミアムセミナーは盛況にて終了
2023年7月8日TKP品川カンファレンスセンターにて、座長 早稲田大学スポーツ科学学術院 教授 熊井 司 先生、演者にLudwig-Maximilians-University of Munich (ミュンヘン大学・ドイツ)Prof. Christoph Schmitz 先生をお招きし、拡散型圧力波プレミアムセミナーを開催いたしました。シュミッツ先生は体外衝撃波研究に関する論文を100編以上執筆されている運動器体外衝撃波研究の第一人者です。今回は約30名の先生方にご参加いただき、シュミッツ先生自身の経験や研究論文の内容を中心に1時間ほどご講演の後、懇親会場にて参加者の皆様とのヨーロッパでの拡散型圧力波治療の実情や使用症例に関してのフリーディスカッションを行い、盛況にて終了いたしました。Aimedic MMTは今後もエビデンスに基づいた情報発信、イベントを開催して参ります。
-
拡散型圧力波トリートメントを含むマルチモーダルアプローチ
拡散型圧力波とは
拡散型圧力波 発生のメカニズム
拡散型圧力波トリートメントは、ハンドピース先端からエネルギー(圧力波)が放射状に広がりながら表皮を通じて内部の組織へ伝わり、筋や腱をマッサージします。圧力波は、圧縮空気によって押されたプロジェクタイル(発射体)がハンドピース先端にあるアプリケーターへ衝突した時に発生する運動エネルギーです。

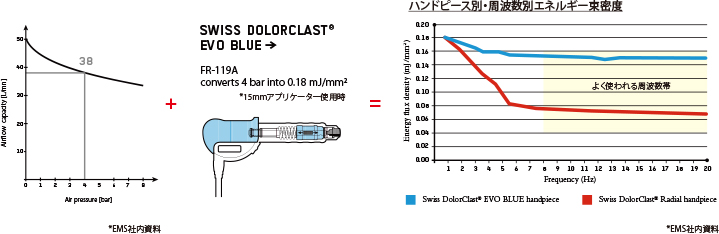

m=プロジェクタイルの重さ v=プロジェクタイルの速さと考えます。よって速いスピードになれば、発生する運動エネルギーは大きくなります。プロジェクタイルを加速するため、コンプレッサーで空気を圧縮してハンドピース内に送ります。EMSでは外付けコンプレッサーを採用し、毎分38Lの空気を送り込むことによってプロジェクタイルを加速させています。また、EVO BLUEハンドピースはEMS独自の特許技術により高い周波数のトリートメント時においても安定してエネルギーをアプリケーターに伝えています。
EVO BLUE ハンドピースは高周波数でもパワーロス「少」
体外衝撃波には拡散型と集束型があり、前者を拡散型圧力波、後者を集束型体外衝撃波と呼び名も物理的特性も異なります。しかしながら両者の刺激作用やメカニズムはよく似ています。違いは組織内での伝達深度です。拡散型圧力波は40mm、集束型は80mmに達します。
-

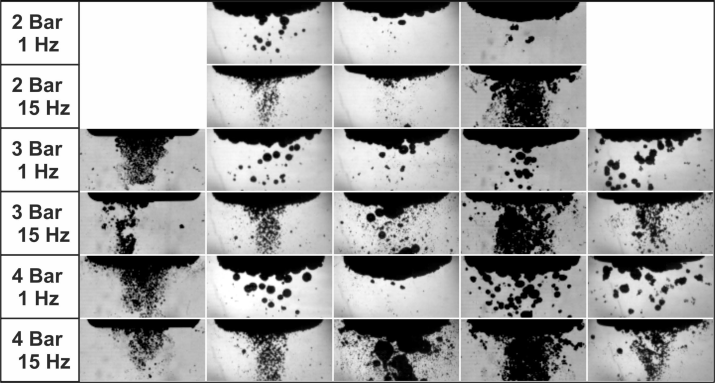

Radial Shock Wave Devices Generate Cavitation
Nikolaus B.M. Csaszar, Nicholas B.Angstman, stefan Milz, Christoph M. Sprecher, Philippe Kobel, Mohamed Farhat, John P. Furia, Christoph Schmitz
参考文献
Effectiveness of Radial Extracorporeal Shock Wave Therapy (rESWT) When Combined With Supervised Exercises in Patients With Subacromial Shoulder Pain: A Double-Masked, Randomized, Sham-Controlled Trial[Title]Kvalvaag et al. [Author]
Am J Sports Med 2017; 45:2547-2554. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/28586628/
Efficacy of Radial Extracorporeal Shock Wave Therapy on Lateral Epicondylosis, and Changes in the Common Extensor Tendon Stiffness with Pretherapy and Posttherapy in Real-Time Sonoelastography: A Randomized Controlled Study[Title]
Yang et al. [Author]
Am J Phys Med Rehabil 2017; 96:93-100. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/27323324/
Shockwave therapy for the treatment of chronic proximal hamstring tendinopathy in professional athletes[Title]
Cacchio et al. [Author]
Am J Sports Med 2011; 39:146-153. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/20855554/
Eccentric loading, shock-wave treatment, or a wait-and-see policy for tendinopathy of the main body of tendo Achillis: a randomized controlled trial[Title]
Rompe et al. [Author]
Am J Sports Med 2007; 35:374-383. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/17244902/
Eccentric loading compared with shock wave treatment for chronic insertional achilles tendinopathy. A randomized, controlled trial[Title]
Rompe et al. [Author]
J Bone Joint Surg Am 2008; 90:52-61. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/18171957/
Eccentric loading versus eccentric loading plus shock-wave treatment for midportion achilles tendinopathy: a randomized controlled trial[Title]
Rompe et al. [Author]
Am J Sports Med 2009a; 37:463-470. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/19088057/
Radial extracorporeal shock wave therapy is safe and effective in the treatment of chronic recalcitrant plantar fasciitis: results of a confirmatory randomized placebo-controlled multicenter study[Title]
Gerdesmeyer et al. [Author]
Am J Sports Med 2008; 36:2100-2109. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/27323324/
Chronic plantar fasciitis treated with two sessions of radial extracorporeal shock wave therapy[Title]
Ibrahim et al. [Author]
Foot Ankle Int 2010; 31:391-397. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/20460065/
Comparison of different energy densities of extracorporeal shock wave therapy (ESWT) for the management of chronic heel pain[Title]
Chow & Cheing [Author]
Clin Rehabil 2007; 21:131-141. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/17264107/
Extra Corporeal Shock Wave Therapy Versus Local Corticosteroid Injection in the Treatment of Chronic Plantar Fasciitis, a Single Blinded Randomized Clinical Trial[Title]
Eslamian et al. [Author]
Pain Med 2016; 17:1722-1731. [Journal]
Cited 2022.03.22. Available from https://pubmed.ncbi.nlm.nih.gov/27282594/
